Description

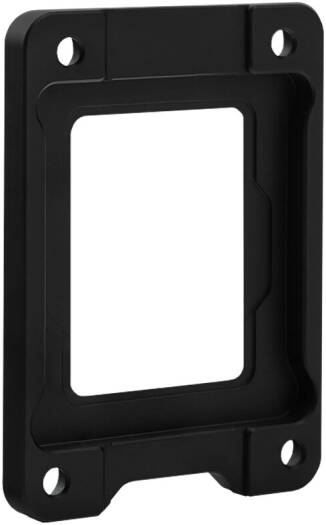

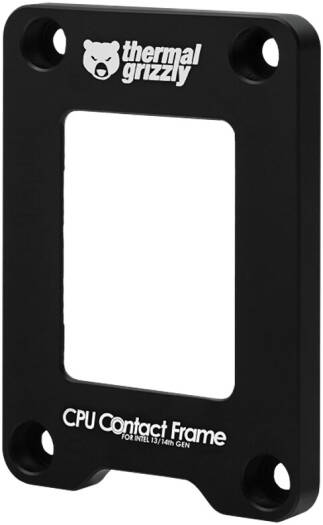

With the 13th/14th Gen CPU Contact Frame from der8auer, Thermal Grizzly offers a mounting aid for Intel socket LGA1700 motherboards. The contact frame replaces the standard ILM of the motherboard and improves the cooling performance of the CPU cooler by optimized contact pressure.
The Contact Frame was designed in collaboration with Roman "der8auer" Hartung and is manufactured in Berlin - 100% Made in Germany. Roman Hartung is a mechatronic engineer, hardware enthusiast and content creator in the field of PC hardware. At the same time, he is a well-known overclocker who has designed numerous products for overclocking PC hardware.
The standard Integrated Loading Mechanism (ILM) has contact points located in the centre of the elongated CPU. Due to the resulting uneven contact pressure of the processor into the socket, the surface of the Integrated Heat Spreader (IHS) curves concavely. As a result, the base plate of the CPU cooler rests primarily on the edges of the IHS, so that the thermal "hotspot" in the middle of the CPU is not optimally covered.
